5 - Pin LCD Display Screen for M5 E - bikes: Speedometer & Control Panel, E - bike Accessory

 Features

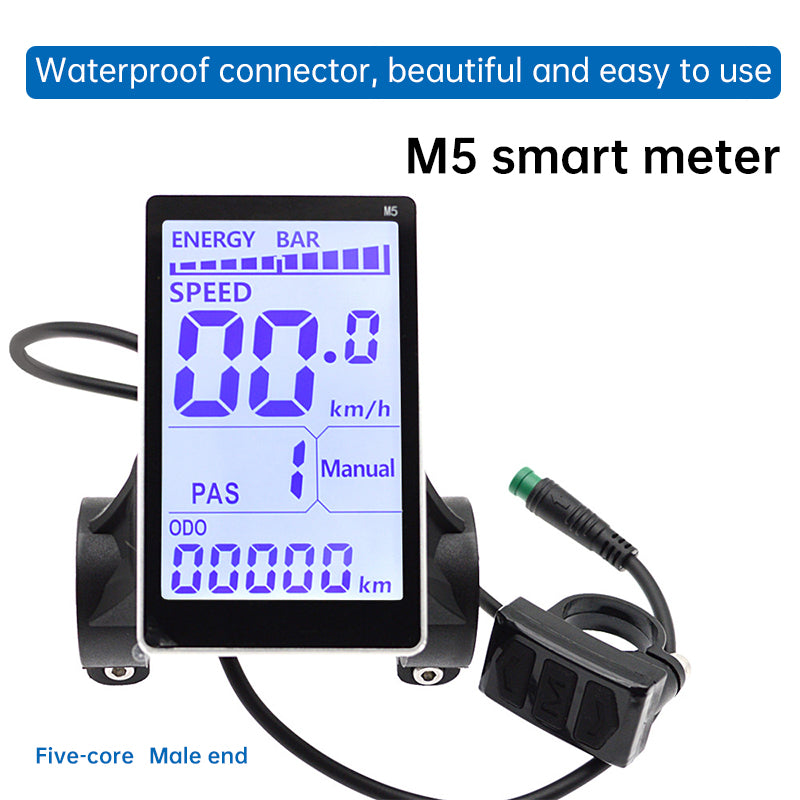

1. Intuitively shows speed, assist level, battery capacity, error code, ODO (odometer), trip distance, light status, and single - ride time.

2. M5 settings cover battery power button, front light button, 6 km/h walking mode, wheel diameter setting, maximum speed setting, sleep time, backlight adjustment, and voltage setting.

3. Note: The communication protocol of the smart LCD instrument is Protocol No. 2.

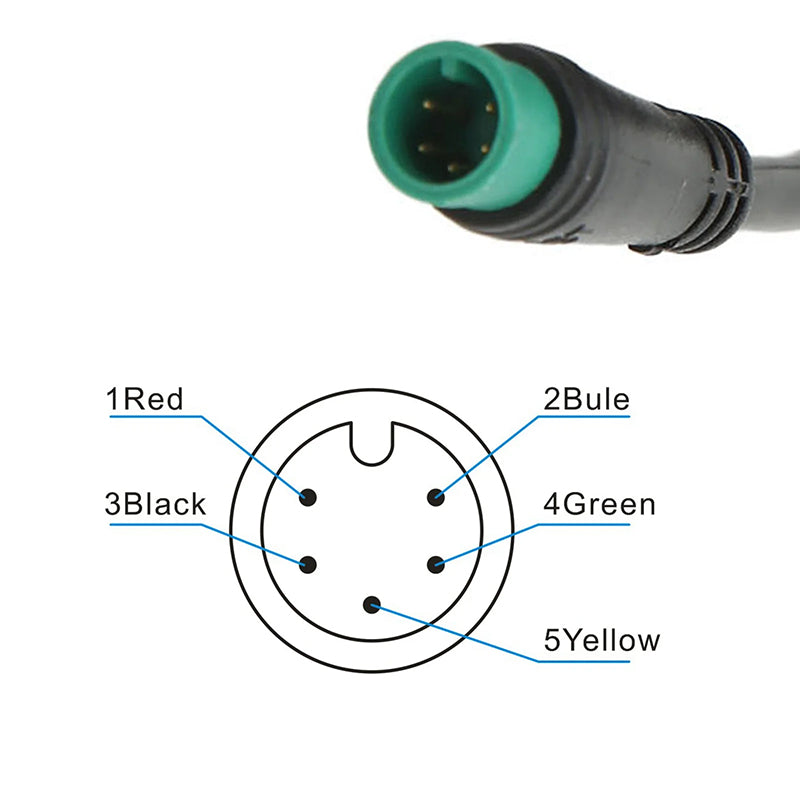

  Wiring

- Red wire: Power positive (+)

- Blue wire: Power switch

- Black wire: Power negative (-)

- Green wire: Receive (RX)

- Yellow wire: Transmit (TX)

  Description

1. Material: ABS

2. Dimensions: 9.4x8.8x6.4cm

3. Cable length: 2m

4. Weight: Approximately 230g

  Package Contents

1 x M5 Display
