Technical characteristics:

Output frequency range:0~99Hz, meet general speed regulation occassion

With speed regulating potentiometer, can also connect outside speed regulating potentiometer

Built-in intelligent logic controller,can realize simple logic control function

With electronic thermal relay function, and other traditional motor protection devices

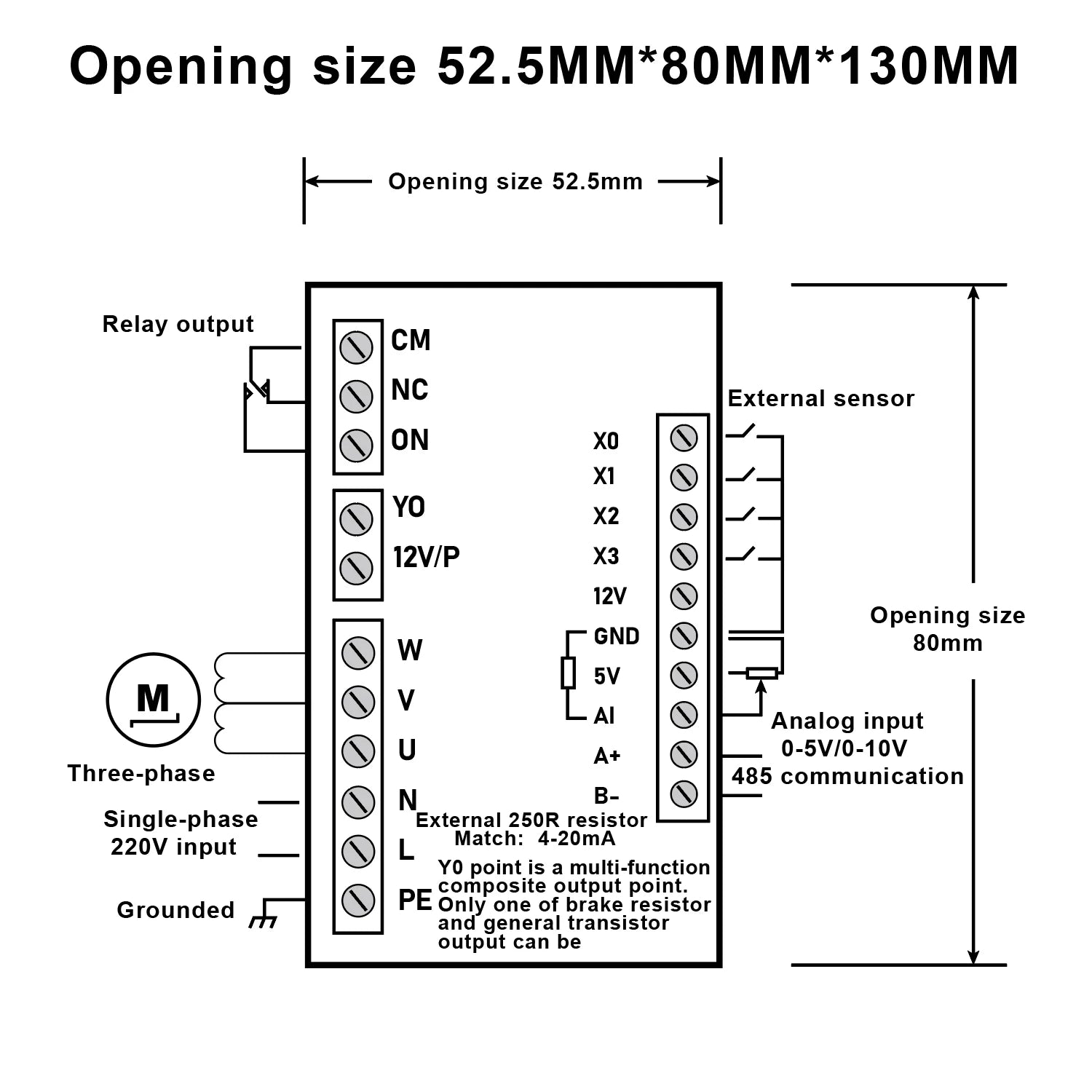

Can connect external LED indication,convenient for on site use

Adopt the new IPM module,has complete protection function

User friendly operation interface, simple parameter setting, very convenient to use

Can set at will the V/F curve function,meet the special requirements occasions

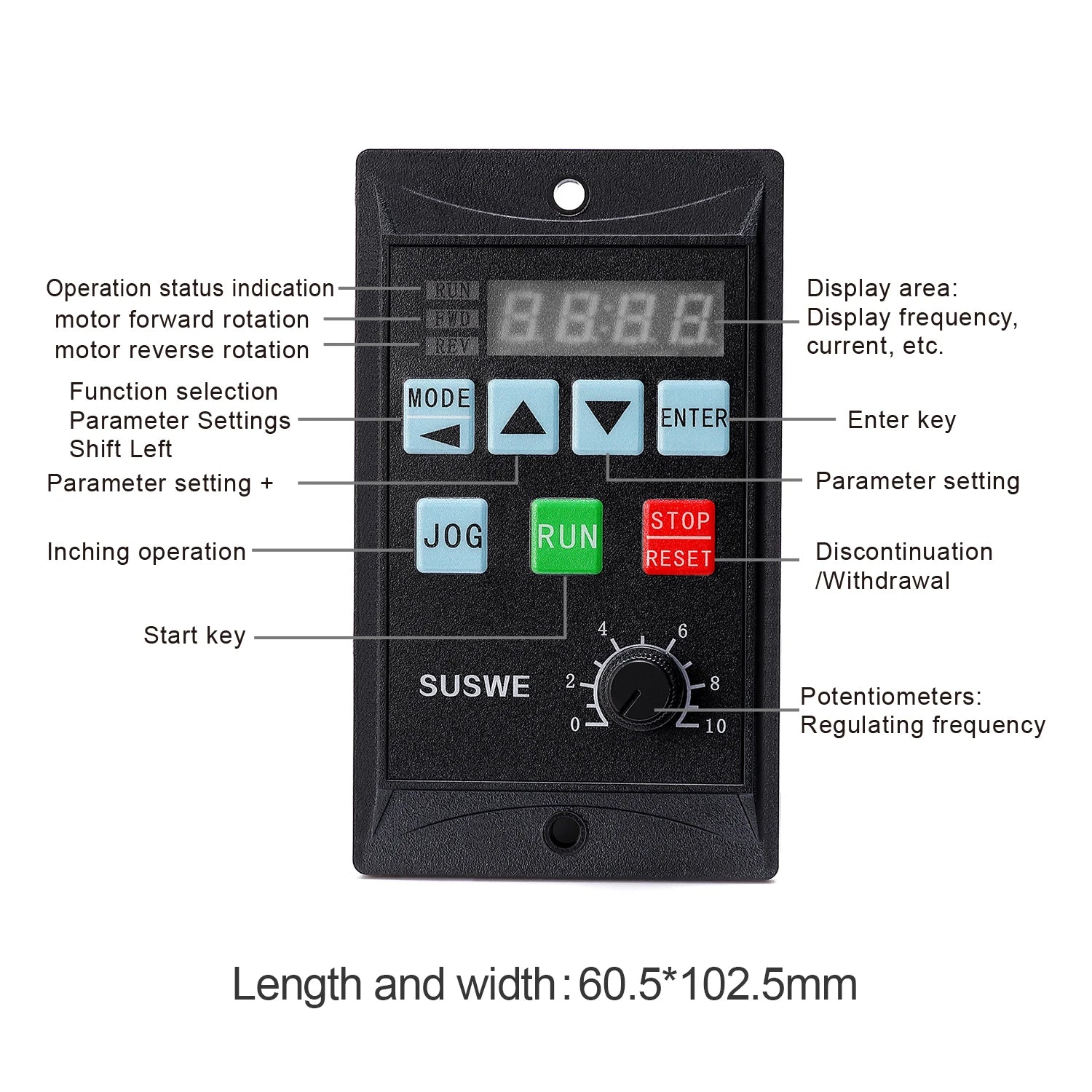

Can use Shift key to view the real-time parameters

Input frequency:50/60Hz

Output frequency:0~99Hz

Input voltage:1phase200v~240v AC, output voltage:3phase200v~240v AC,

Power:0.2kw~0.75kw

Widely used for simple speed regulation of:conveyer belt,packaging machine,food machine,transmission equipment and others
