Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during
nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will
automatically cut off the load from the system. If the voltage of
battery is back to normal and the load will restart working.
8. Thunder protection
9. According to the battery voltage grade, the controller can
automatically set charge-off voltage, the load-off voltage, the
load- restore voltage. (The parameter is default under 25℃
condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate the temperature of
the charging voltage according to the changes of ambient temperature.

Features:
1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current,
discharge current accurate real-time display, power generation at a glance.
2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection
during charging, bidirectional focusing tracking.

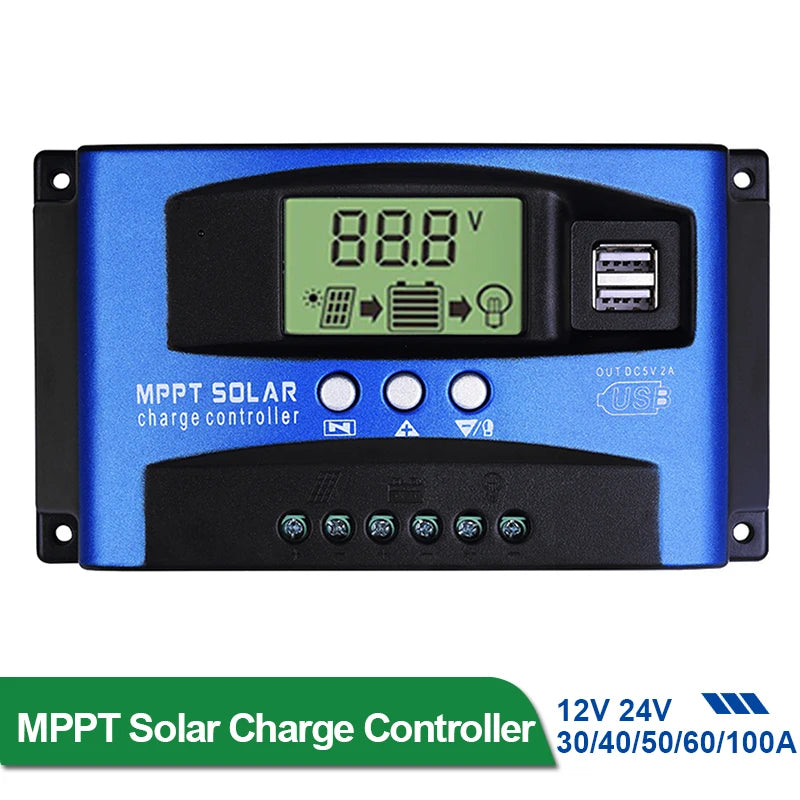

3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge
and discharge adjustable, as long as you understand the characteristics of the battery set its
corresponding charging parameters, you can charge a battery. When the output is off, the time
can be adjusted, which is more convenient. (on the market, there is no point adjustment)
4. Acomplete three-phase charge management, effectively protect the battery, the battery is more
durable.
5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection
protection,when the fault is eliminated, the controller automatically recovers, does not damage
the device.
6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

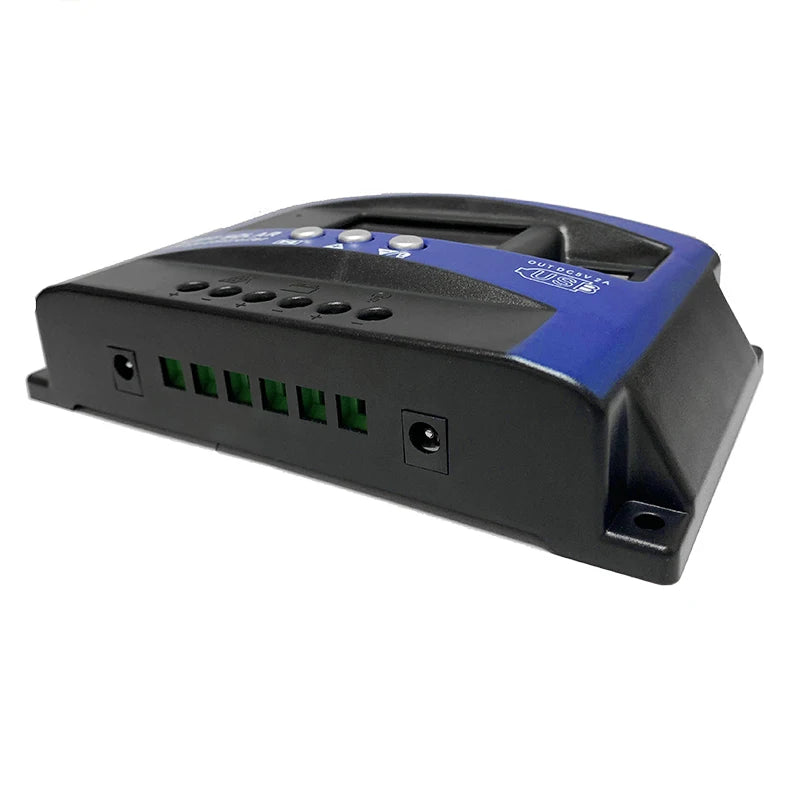

7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.
Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT

Specifications

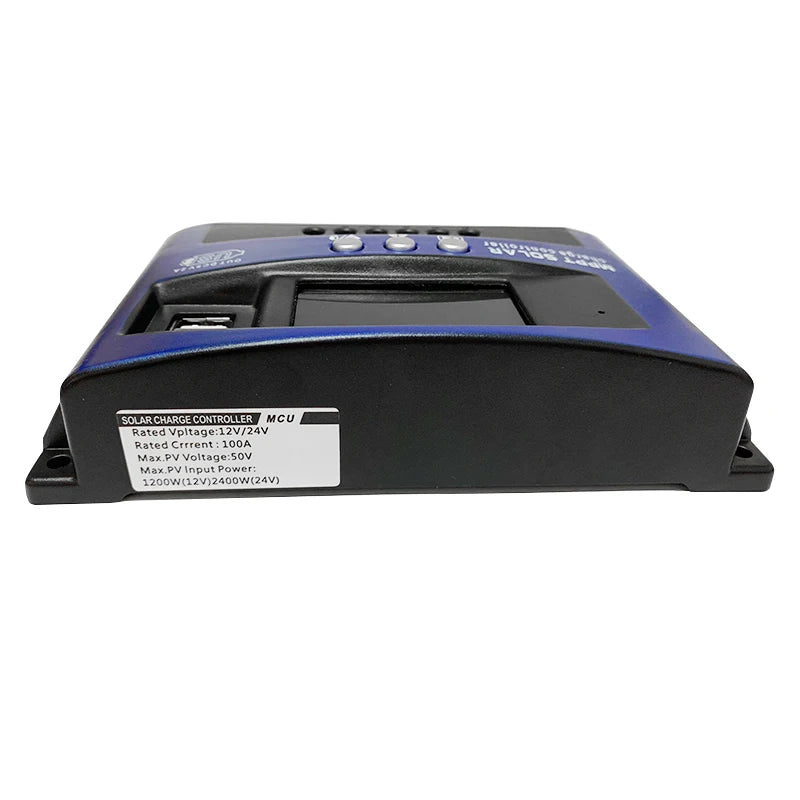

1. Rated voltage: 12/24V
2. Rated current: 30/40/50/60/100A
3. Max. PV input power: 750W(12V) / 1200W(24V)
4.System voltage: 12 / 24V adaptive
5.Rated charging current: 30A | 40A | 50A| 60A | 100A
6.Rated discharge current: 10A | 20A | 20A | 30A | 30A
7.Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel
8.Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V)
9.Floating Charge Voltage : 13.7 V ( Default, Adjustable )
10.Discharge cut-off voltage::10.7 V ( default, adjustable )
11.Discharge recovery voltage: 12.6 V ( default, adjustable )
12.Standby current :10mA
13.USB Output : 5V / 2A MAX

Package Includes:
1 x Solar Panels Battery Charge Controller
1 x User Manual
