SPECIFICATIONS

Battery: Built-In

Brand Name: podofo

Display: OLED

Is Batteries Included: Yes

Item Type: Car DVR

Loop-Cycle Recording Feature: Yes

Max External Memory: 32G

Number Of Lenses: 3

OSD Language: English

Origin: De(origin)

Original Package: Yes

Power Source: Corded Electric

Rear Camera: Yes

Video Format: MOV

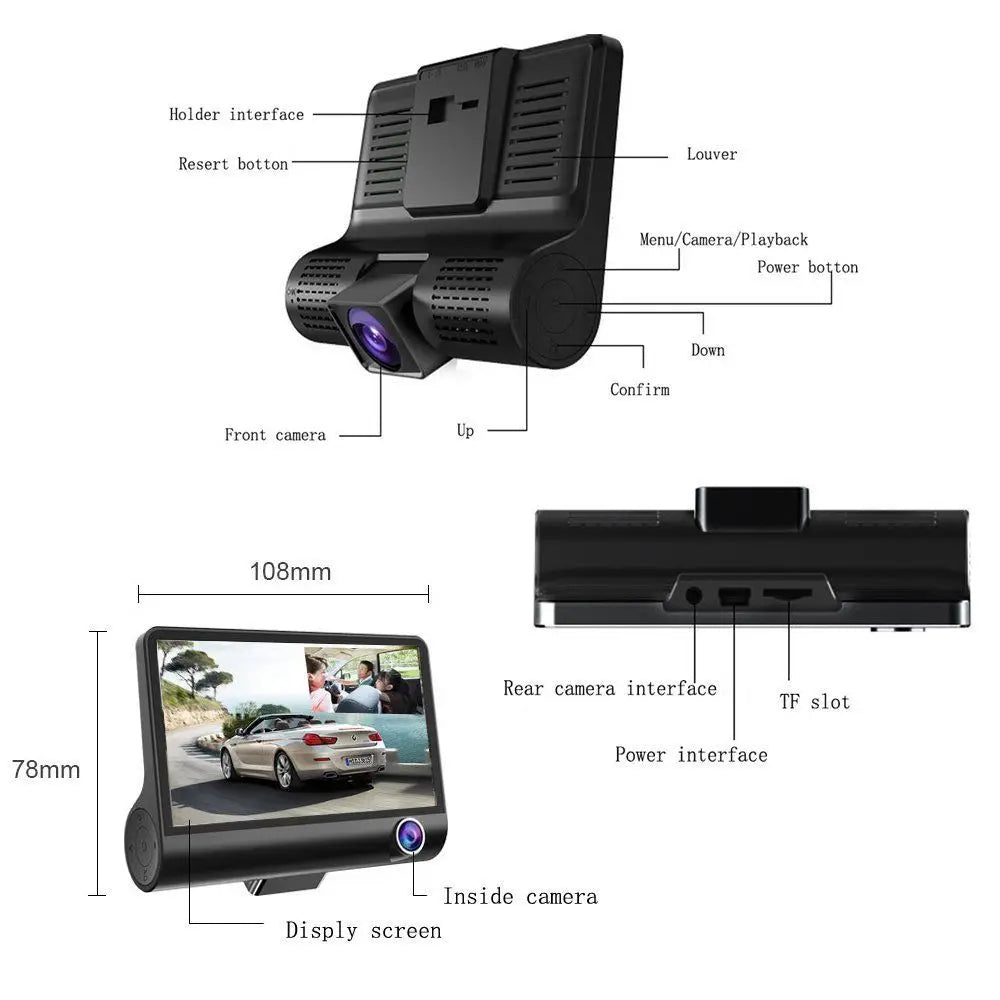

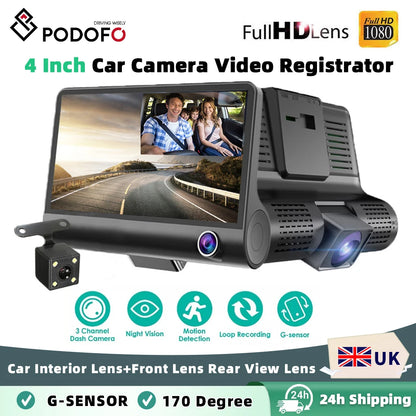

Podofo 3 Channel Car DVR 3-Lens Inside Vehicle Dash CamThree Way Camera DVRs Recorder Video Registrator Dashcam Camcorder

Specification:

Mini car dvr with dual cameras

Chipset: Jieli

Resolution:

<front camera 1080p

<rear camera 720p

<car camera 720p

Sensor: sensor_1014/410

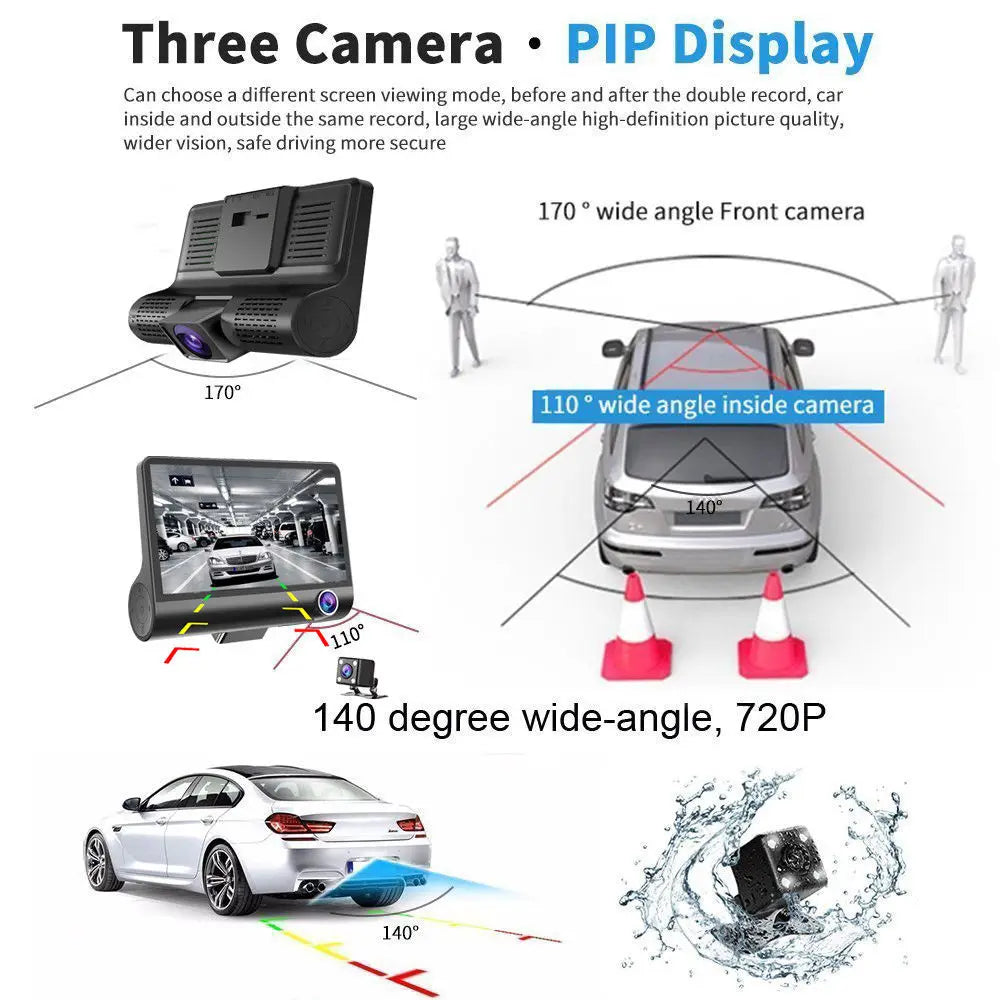

Front camera: 170 degree A+ grade HD wide angle

Rear camera: 140 degree wide angle

Car camera:120 degree wide angle

Photo format: JPEG

Compression format: H.264

Video format: AVI(1080p)

Display screen: 4.0 inch IPS screen

Night vision: support

G-sensor: support

Time stamp: support

Memory Card: TF(maximum support 32G)

Packing demension: 17x11x8cm

Weight: 0.555KG

Backup Camera

View angel: 170°

Image chip: 1/3 Inch Color CMOS

TV System: NTSC /PAL

Effective pixels: 628*582 pixels

Horizontal Resolution(TV lines): 420 TV lines

Power Supply: DC 12V

Operating Temperature:-40°C~+80°C, RH95% Max

Video Output: RCA connector, 1.0VP-P, 75Ohm

S/N ratio: more than 48db

Electronic shutter: 1/50-1/10000 seconds

IP Rating: IP68

Note: This product does not support three-way camera work at the same time, only can maintain up two-way camera work.

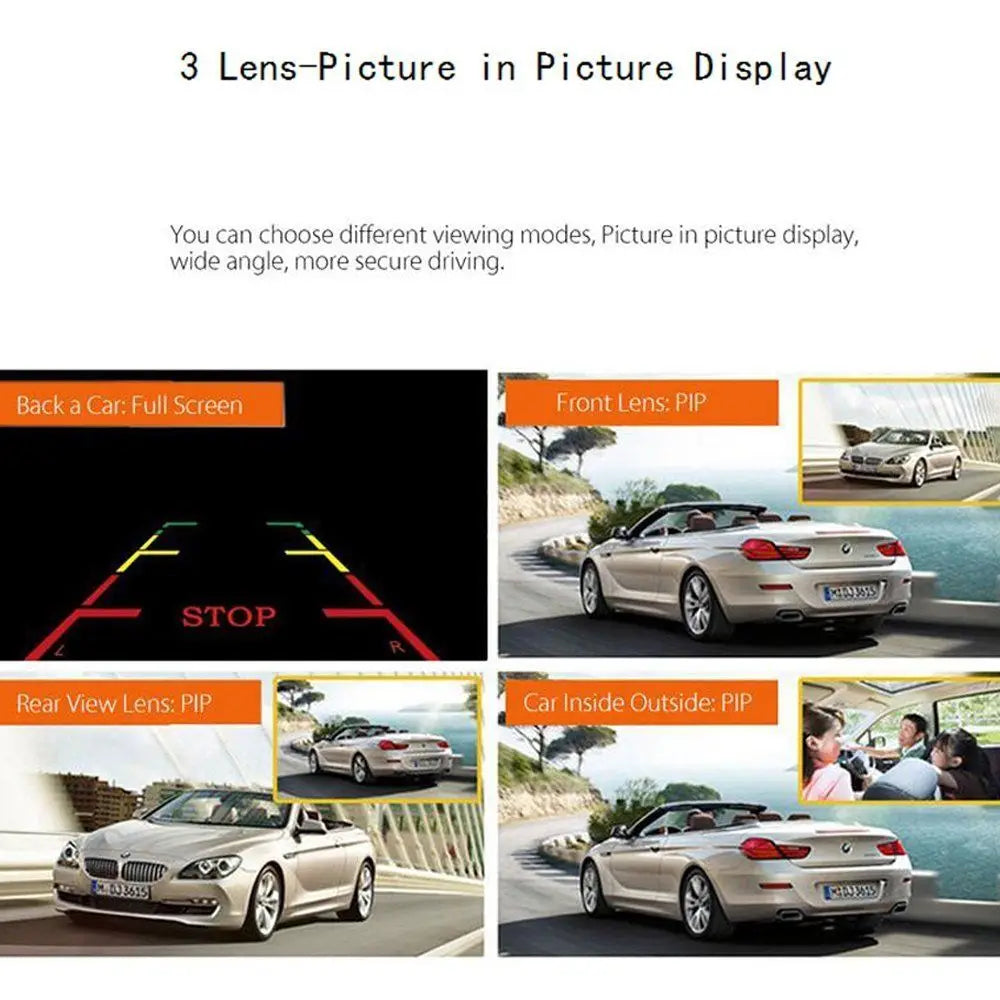

Such as the front camera + car camera work at the same time, or front camera + rear camera work at the same time.If you install a rearview camera, select the display for the front camera + car camera mode,then when reverse gear the screen will automatically display full-screen rear view screen.

Cancel the reverse gear will be automatically restored to the front camera + car camera video mode, and the reverse gear does not affect the car inside and outside simultaneously recording.

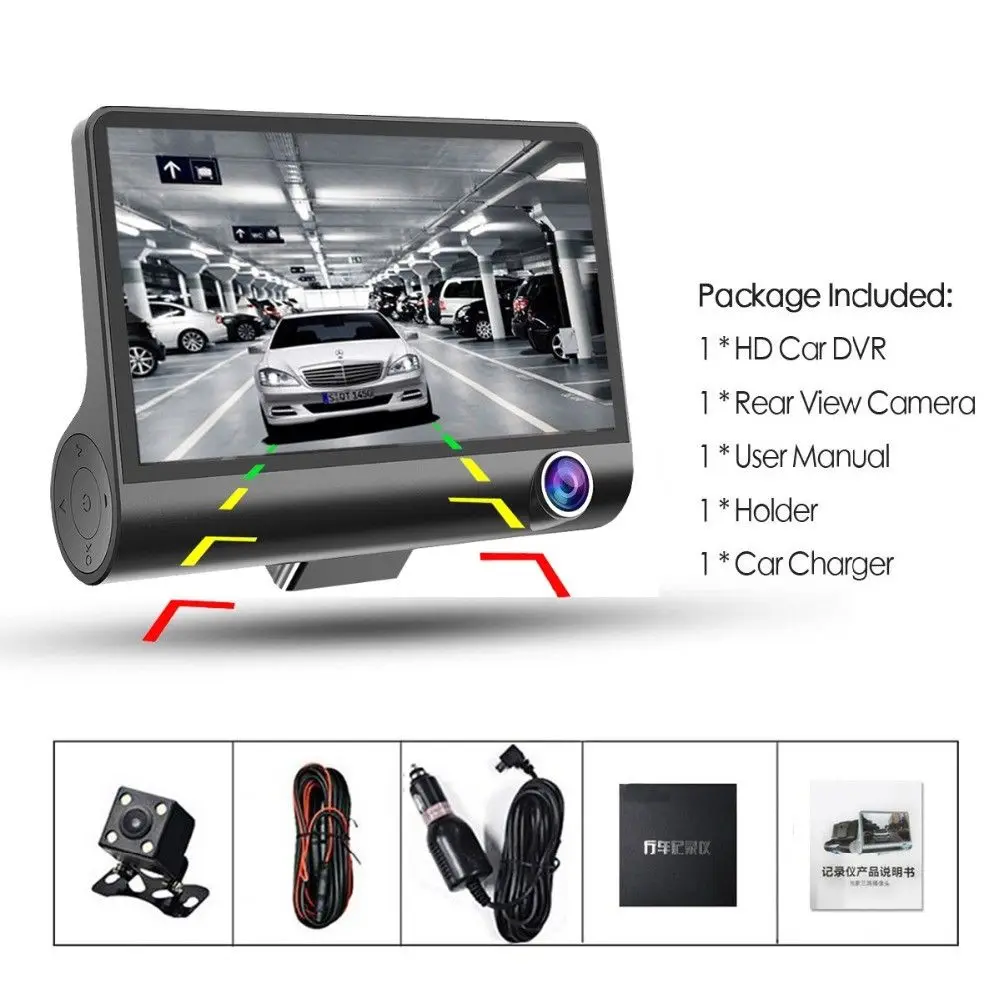

Package Contains:

1 x Car DVR with Backup Camera

1 x Car charger

1 x Rear camera cable

1 x Retial Box

1 x User Manual

1 x Retail Box

Kindly remind:

1.It needs a micro SD card, which should be original and high speed C10, 4-32GB.Be carful there are many copies in the market.

2. Do not charge via usb cable from computer, please charge via the 12V car charger. It may burn the motherboard if on truck of 24v power, please add a 24v to 12v converter.

3. To keep driving safe, as the car temperature is very high when outdoors in summer, if large battery, it will be easy to explode,so the battery of car DVR are produced very small. The battery is only to save the video when power off suddenly. Therefore please charge via car charger when used.

4. How to loop recording?

1> Please turn on the loop recording in the menu of car camera.

2> Please format the card in the car camera before use.

3> Please turn low or off the G-sensor due to the high sensitivity, it will save many videos which can't be cycle covered, so the card is filled full soon, then it stops the video.

5. View Angle:

The angle showed in the display is not the view angle, please play the video on computer, it will be larger and clearer than in registrar.
